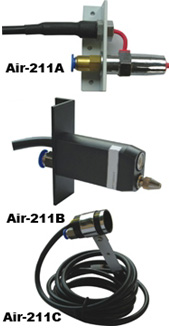

Ionizing Air Nozzle (TEC-211A/B/C)
Manufacturing Part Number: TEC-211A/B/CDescription: Ionizing Air Nozzle
Specification:
1. The TEC-311A/B/C ionizing air gun is a handhold device which provides concentrated flow of high pressure ionized air to a targeted surface or object.
2. They are designed for more large focused cleaning and neutralization.
3. It is well used in delicate electronic products, electronic assembly line, medical device manufacture and assembly line.
4. It has an effective distance of 1,000mm.
5. It operates with TEC-402A/B Power Supply which must be ordered separately.
Technical Data:
| Operating Voltage | 5.6KV |
| Current Consumption | 200uA |
| Operating Temperature | 0 ~ 50°C |
| Weight | 0.5kg |
| HV Cable length | 3 Meters |
| Operating air pressure | 40 - 70psi |
| Operating air velocity | >10m/sec |
Decay Test Results:
| Air-211A/C Testing Conditions | ||||
| Testing Voltage Range:5.0KV to 500V Operating Voltage:5.6KV Temperature:20°C | ||||
| Distance | 30mm | 90mm | 150mm | |
| Decay Time | Positive | 0.1s | 0.2s | 0.9s |
| Negative | 0.1s | 0.2s | 0.7s | |
| Offset voltage | Positive | -23V | -18V | +14V |
| Negative | -29V | -16V | +17V | |
| Air-211B Testing Conditions | |||||
| Testing Voltage Range:1.0KV to 100V Operating Voltage:5.6KV Temperature:20°C | |||||
| Distance | 30mm | 90mm | 150mm | ||
| Decay time | Positve | 0.5s | 1.0s | 1.9s | |
| Negative | 0.6s | 1.1s | 1.7s | ||
| Offset voltage | Positive | -7V | -5V | +3V | |
| Negative | -6V | -4V | +5V | ||
